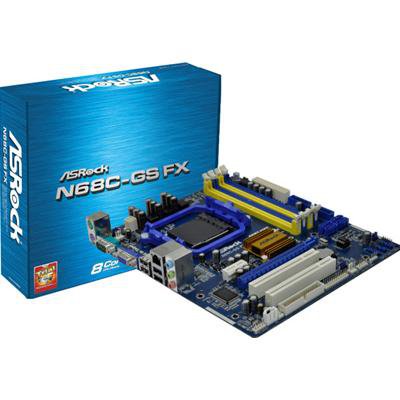

Asrock N68C-GSFX Skt AM2 Motherboard

Asrock N68C-GSFX Skt AM2 Motherboard

Click image to enlarge.

Availability: Discontinued

£ 39.54 inc VAT

Details

Key Features:

CPU
Support up to 95W Socket AM3+ processors
Support up to 95W Socket AM3 processors: AMD Phenom? II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
Support up to 95W Socket AM2+ / AM2 processors: AMD Phenom? FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
Supports 8-Core CPU
Supports UCC feature (Unlock CPU Core)
Supports AMD's Cool 'n' Quiet Technology
FSB 1000 MHz (2.0 GT/s)
Supports Untied Overclocking Technology
Supports Hyper-Transport Technology
Chipset
NVIDIA® GeForce 7025 / nForce 630a
Memory
Dual Channel DDR3/DDR2 memory technology*
2 x DDR3 DIMM slots**
Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB***
2 x DDR2 DIMM slots
Supports DDR2 1066/800/667/533 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB***
*DDR3 and DDR2 are supported separately.
**DDR3 memory is only supported by installing AM3/AM3+ CPU.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
8Mb AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
CPU, VCCM, NB Voltage Multi-adjustment
Audio, Video and Networking

Graphics
Integrated NVIDIA® GeForce 7025 graphics
DX9.0 VGA, Pixel Shader 3.0
Max. shared memory 256MB
Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Audio
5.1 CH HD Audio (VIA® VT1705 Audio Codec)
LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Realtek RTL8211CL
Supports Wake-On-LAN
Supports PXE
Expansion / Connectivity

Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Connector
4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x Print Port header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O I/O Panel
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x VGA Port
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous

Unique Feature
ASRock OC Tuner
ASRock Intelligent Energy Saver
ASRock Instant Boot
ASRock Instant Flash
ASRock OC DNA
ASRock APP Charger
ASRock SmartView
ASRock XFast USB
ASRock XFast LAN
ASRock XFast RAM
Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial; ASRock MAGIX Multimedia Suite - OEM)
Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
Hardware Monitor
CPU Temperature Sensing
Chassis Temperature Sensing
CPU/Chassis/Power Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm
OS
Microsoft® Windows® 7 / 7 64-bit / Vista? / Vista? 64-bit / XP / XP 64-bit compliant
Certifications FCC, CE, WHQL


Manufacturer's Website: www.asrock.com.tw

Reviews

Be the first to review this product: Write review

Rate this product (from 1 to 5 where 5 stars is the best):



Alternative Products

Gigabyte GA-F2A55M-DS2 SKT FM2 Motherboard SGC002873

£ 55.70  (INC. VAT)
2-3 Day Delivery More Info

Gigabyte GA-F2A88XM-D3H SKT FM2+ Motherboard SGC002912

£ 59.30  (INC. VAT)
2-3 Day Delivery More Info

Gigabyte GA-F2A85XM-HD3 SKT FM2 Motherboard SGC002820

£ 64.94  (INC. VAT)
2-3 Day Delivery More Info

Gigabyte GA-F2A88XM-HD3 SKT FM2+ Motherboard SGC002887

£ 56.47  (INC. VAT)
2-3 Day Delivery More Info

Gigabyte GA-F2A75M-HD2 SKT FM2 Motherboard SGC002821

£ 62.12  (INC. VAT)
2-3 Day Delivery More Info

Gigabyte GA-MA78LMT-USB3 SKT AM3+ Motherboard SGC002647

£ 46.60  (INC. VAT)
2-3 Day Delivery More Info

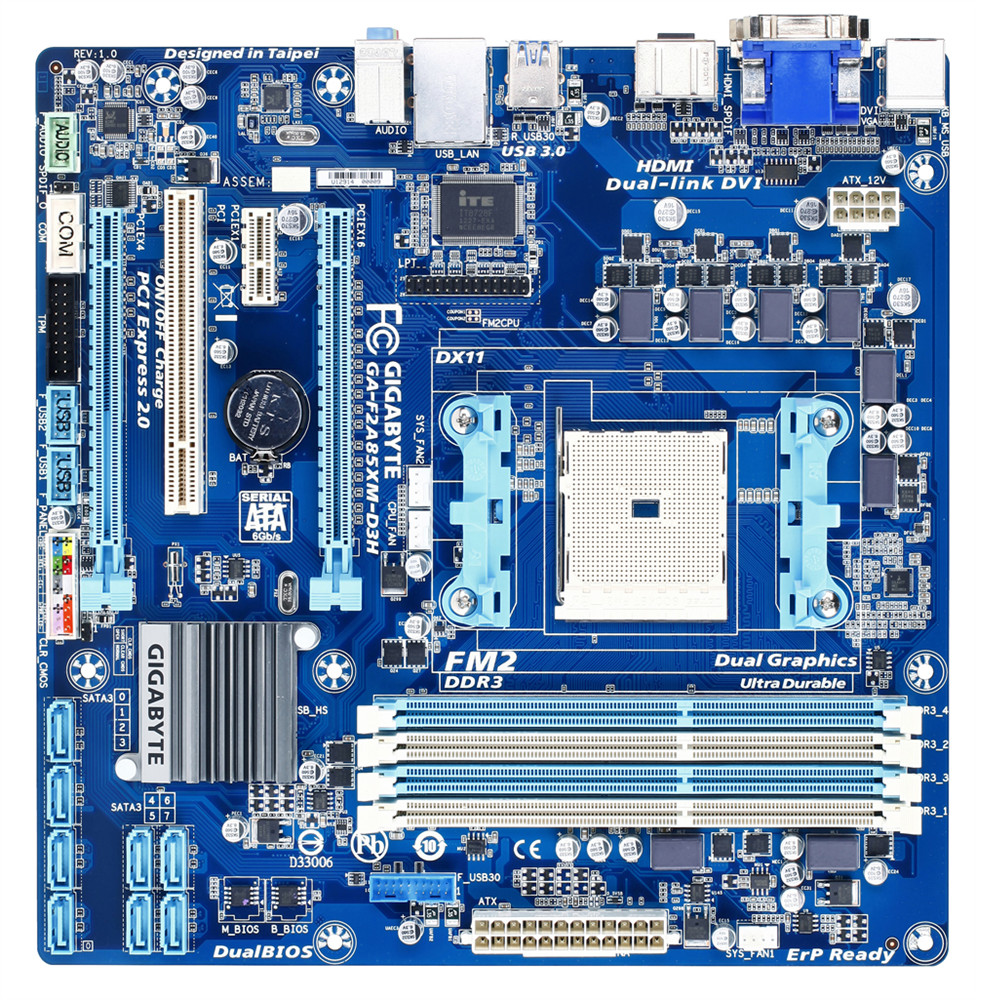

Gigabyte GA-F2A85XM-D3H SKT FM2 Motherboard SGC002673
